Digital TV Antenna for Over the Air Broadcast Reception

Over-the-Air Broadcast Reception

This digital TV antenna is designed to receive over-the-air broadcast signals available in your area when positioned appropriately. It may provide access to local channels depending on broadcast availability and environmental factors.

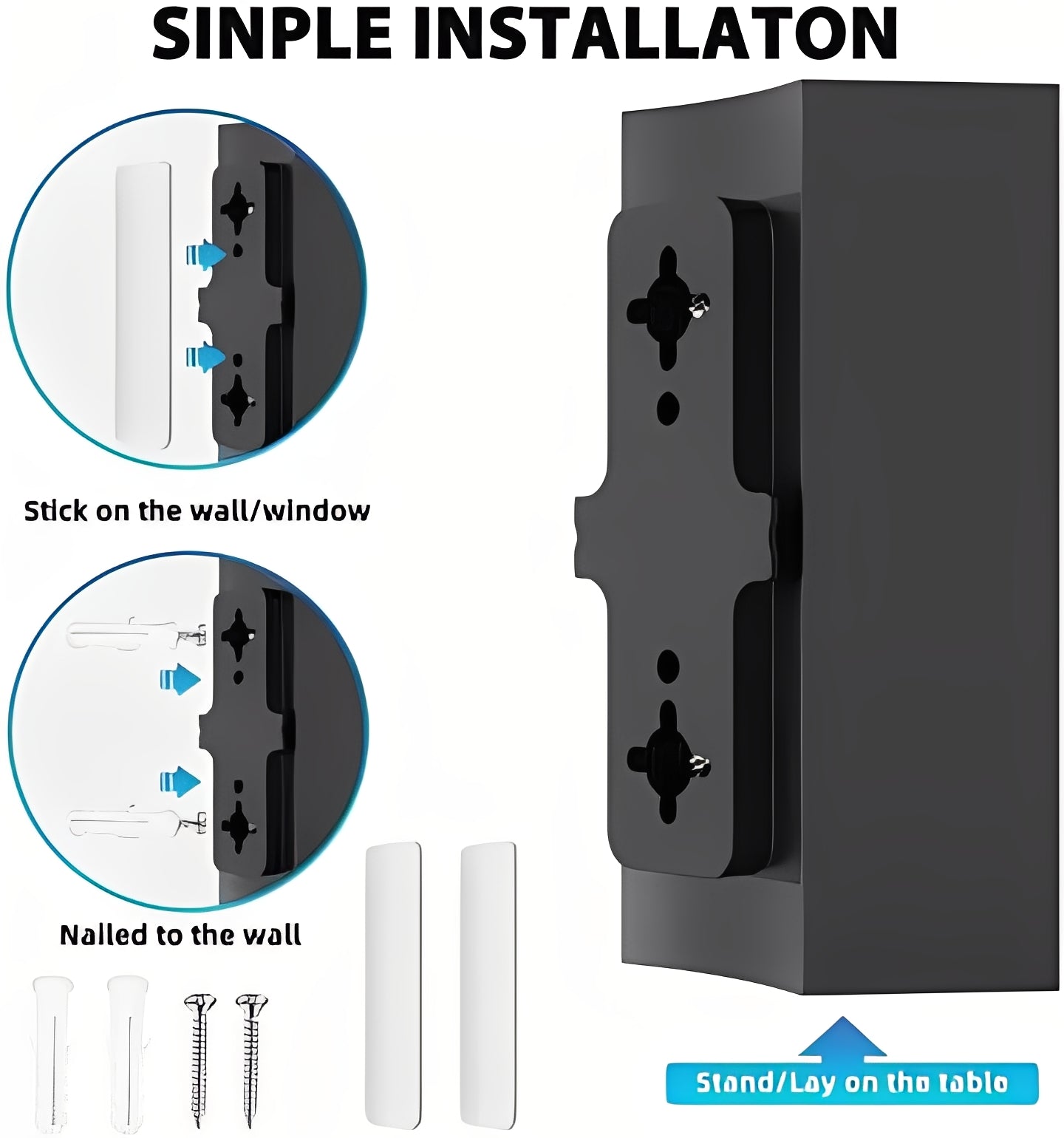

Amplifier and Placement Options

A manufacturer-rated gain amplifier is included to support reception across VHF and UHF frequency ranges. The antenna housing is designed to withstand typical indoor use and may also be placed outdoors in sheltered areas.

Cable and TV Compatibility

The antenna includes a 16.5-foot coaxial cable for flexible placement. It uses a standard 75-ohm impedance and connects to TVs that support common broadcast formats such as 720p, 1080i, 1080p, depending on what local stations transmit and what the TV can display.

Product Specifications

• Working Frequencies: VHF (170-240 MHz), UHF (470-860 MHz)
• VSWR: ≤ 1.5
• Impedance: 75 Ω
• Gain: 39dBi
• Reception Range: Up to 600 Miles (Manufacturer Claimed)
• Cable Length: 16.5 feet (5 meters)
• Connectors: Coaxial Male (with Female adapter if needed)
• Voltage: 5V (Likely USB powered amplifier)
• Operating Temperature: -45 to 85 °C
• TV Compatibility: Formats such as 720p / 1080i / 1080p / 4K based on broadcast source

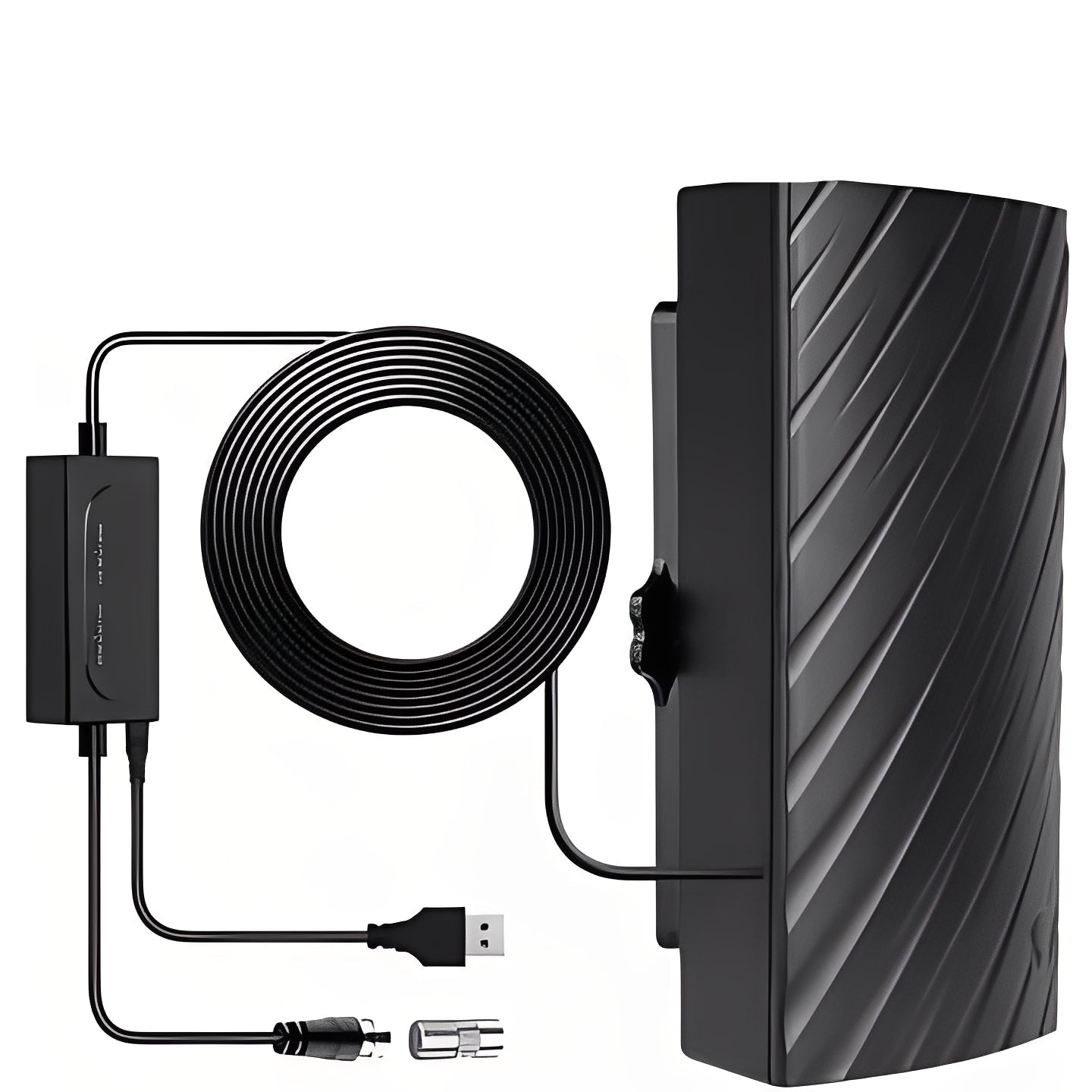

What’s Included

• 1 × TV Antenna
• 1 × Signal Amplifier/Booster (Assumed, powers via USB)
• 1 × USB Cable (For amplifier power)
• 1 × Coaxial Adapter
• 1 × Instruction Manual

Frequently Asked Questions

Q: How far can this antenna receive signals?
A: The manufacturer lists a potential range of up to 600 miles. Actual reception varies based on distance to broadcast towers, terrain, building materials, obstructions, weather, and placement. Indoor reception is typically more limited than outdoor placement.

Q: Do I need internet access for this antenna to work?
A: No. It is intended to receive local over-the-air broadcast signals from nearby stations. Internet access is not required.

Q: Where should I place the antenna for best results?
A: Performance varies by location. Placing the antenna higher, near a window, or facing local broadcast towers may help improve reception. Trying multiple positions is often necessary.

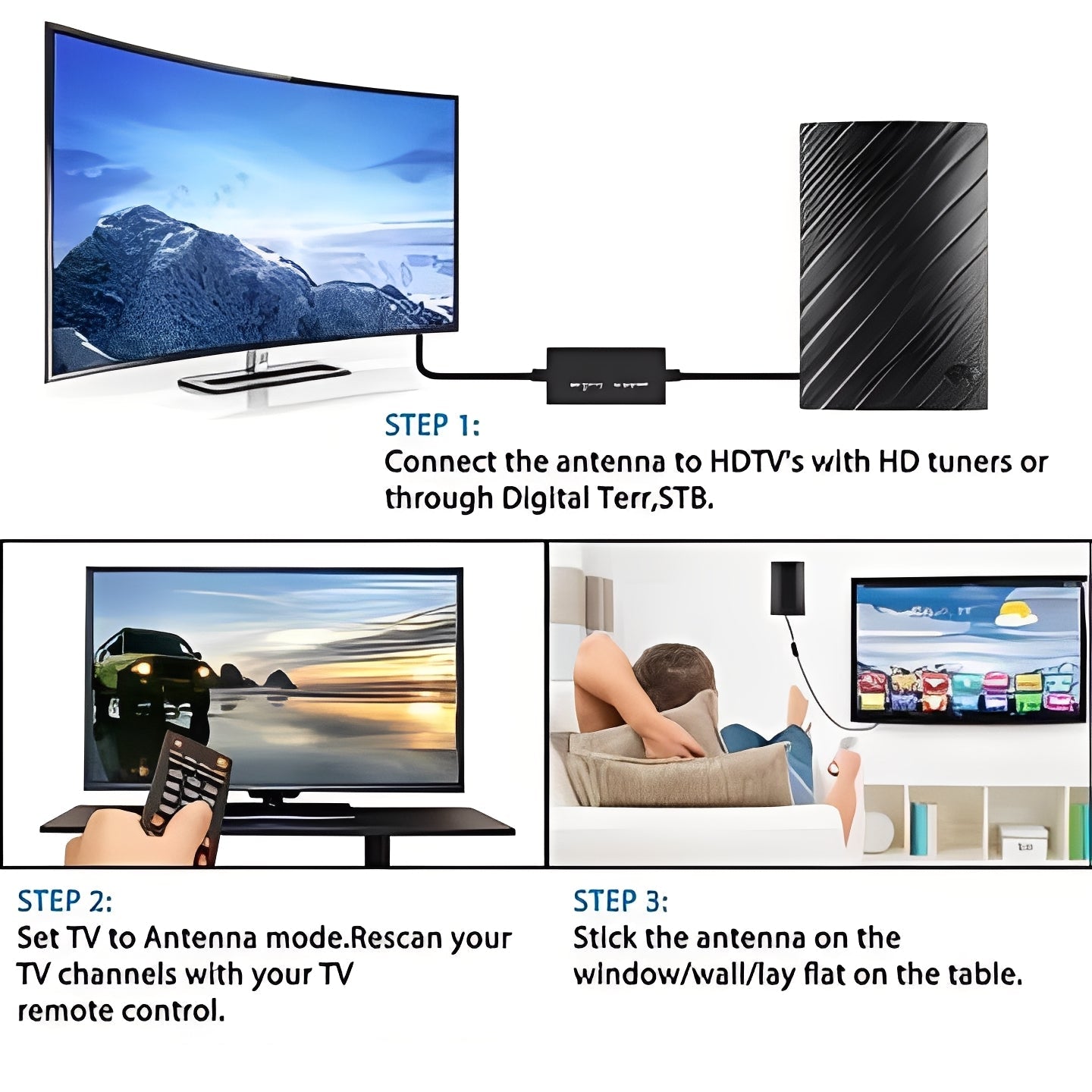

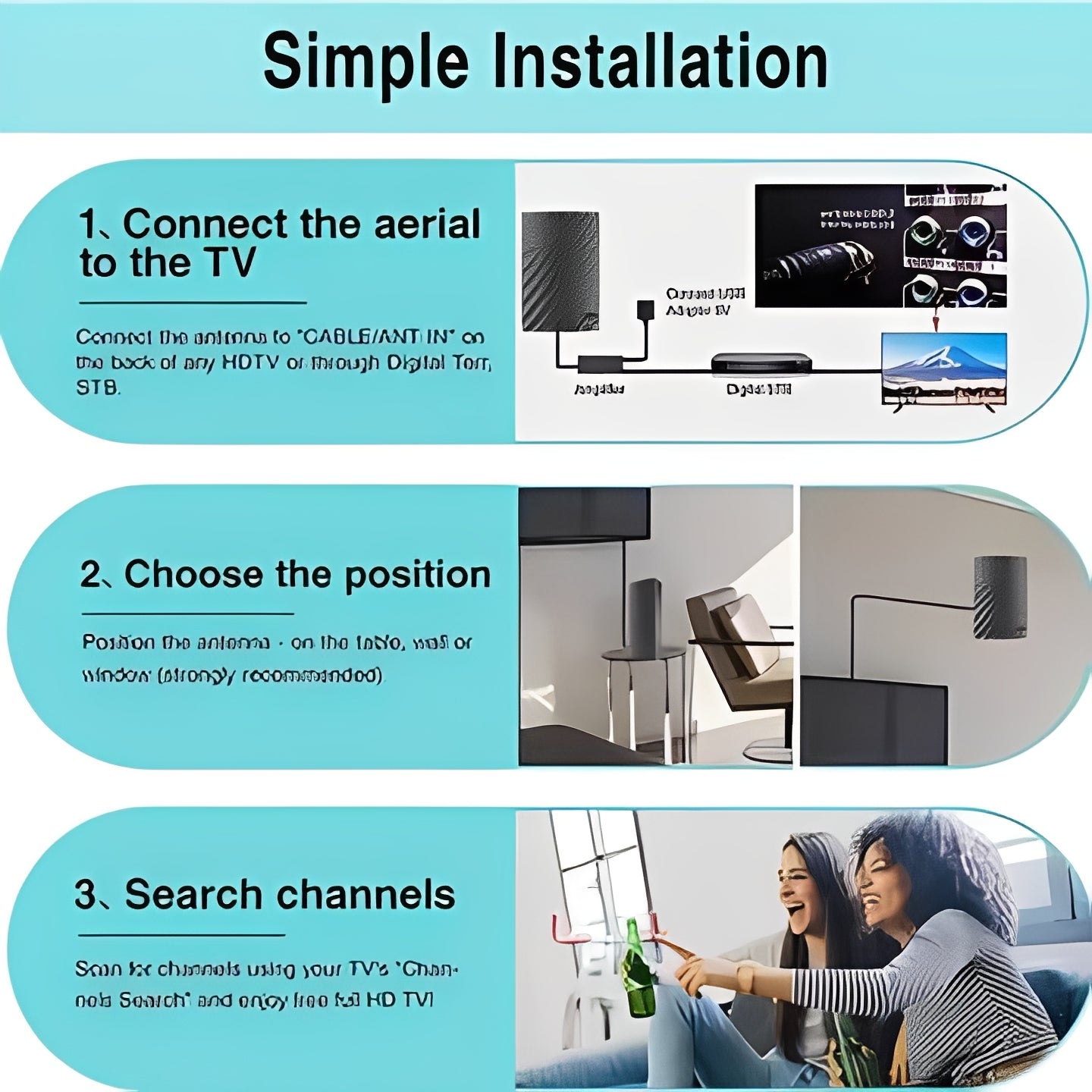

Q: Is it difficult to set up?
A: Setup is generally straightforward. Connect the coaxial cable to the TV, power the amplifier if included, position the antenna, and run a channel scan on the TV.
